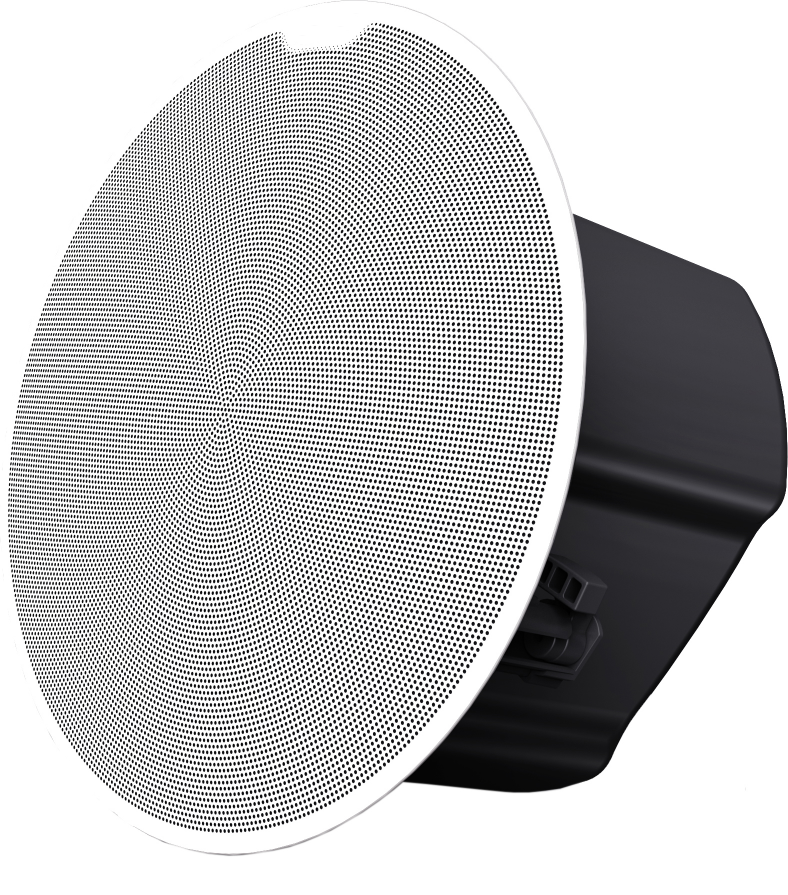

GA BS27T

Описание

Product Overview:
It consists of a 1-inch dome tweeter and a 6.5-inch mid-bass driver.
With a sensitivity of up to 95dB and an output power of 100W, it has a high SPL output and a large dynamic response. The front outlet wiring design is convenient for system construction. Designed with 8 N42 high-strength magnet mesh covers, it can be installed in the narrow environment of the ceiling and is suitable for a wide range of environments.
Technical parameters:
Tweeter: 1×1″ dome;
Mid-bass driver: 1×6.5″;
Rated impedance: 8Ω;
Rated power: 100W (400W, PEAK);
Effective frequency range: 75Hz~20KHz;
Characteristic sensitivity level (1m/1W): 95dB;
SPL in the specified frequency band: 113dB;
Grille material: metal mesh;
Back shell material: iron
Mounting buckle: zinc alloy buckle;
★ Iron mesh installation: no less than 8 high-strength magnets are adsorbed;
Safety device: horn reinforced fixation, rear barrel wire safety rope, iron mesh safety rope;
★ Grille process: etching;
Terminals: Front wiring phoenix terminals;
Installation size: total height 197mm, embedding depth 176mm, installation thickness 10-50mm, opening diameter 270-280mm, horn outer diameter 316mm;
Product net weight: 4.85kg;
Packing weight: 14.25kg; (2 pieces)
Package size: 750*380*285mm
