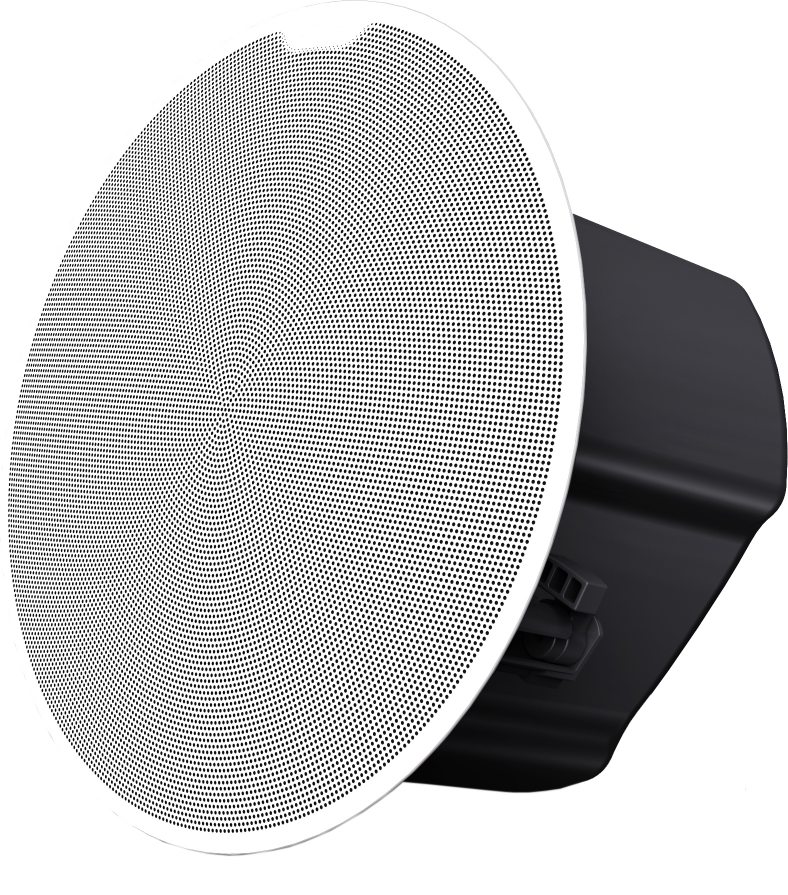

The 6.5-inch coaxial unit has a sensitivity of 90dB and an output power of 60W, with a high SPL output and a large dynamic response. The front outlet wiring design is convenient for system construction. Designed with 8 N42 high-strength magnet mesh covers, it can be installed in the narrow environment of the ceiling and is suitable for a wide range of environments.
Technical parameters:
Unit composition: 1×6.5″+1×1″ dome, coaxial design;
Rated impedance: 8Ω;
Rated Power: 60W (240W, PEAK);
Effective frequency range: 85Hz~20KHz;
Characteristic sensitivity level (1m/1W): 90dB;
Sound pressure level in the specified frequency band: 110dB;
Grille material: metal mesh;
Back shell material: iron
Mounting buckle: zinc alloy buckle;
Terminals: Front wiring phoenix terminals;
★ Iron mesh installation: no less than 8 high-strength magnets are adsorbed;
Safety device: horn reinforced fixation, rear barrel wire safety rope, iron mesh safety rope;
★ Grille process: etching;
Installation size: total height 197mm, embedding depth 176mm, installation thickness 10-50mm, opening diameter 270-280mm, horn outer diameter 316mm;
Product net weight: 3.4kg;
Package weight: 4.8kg;
Package size: 750*380*285mm
