GA SUB1541

Description

Product Overview:

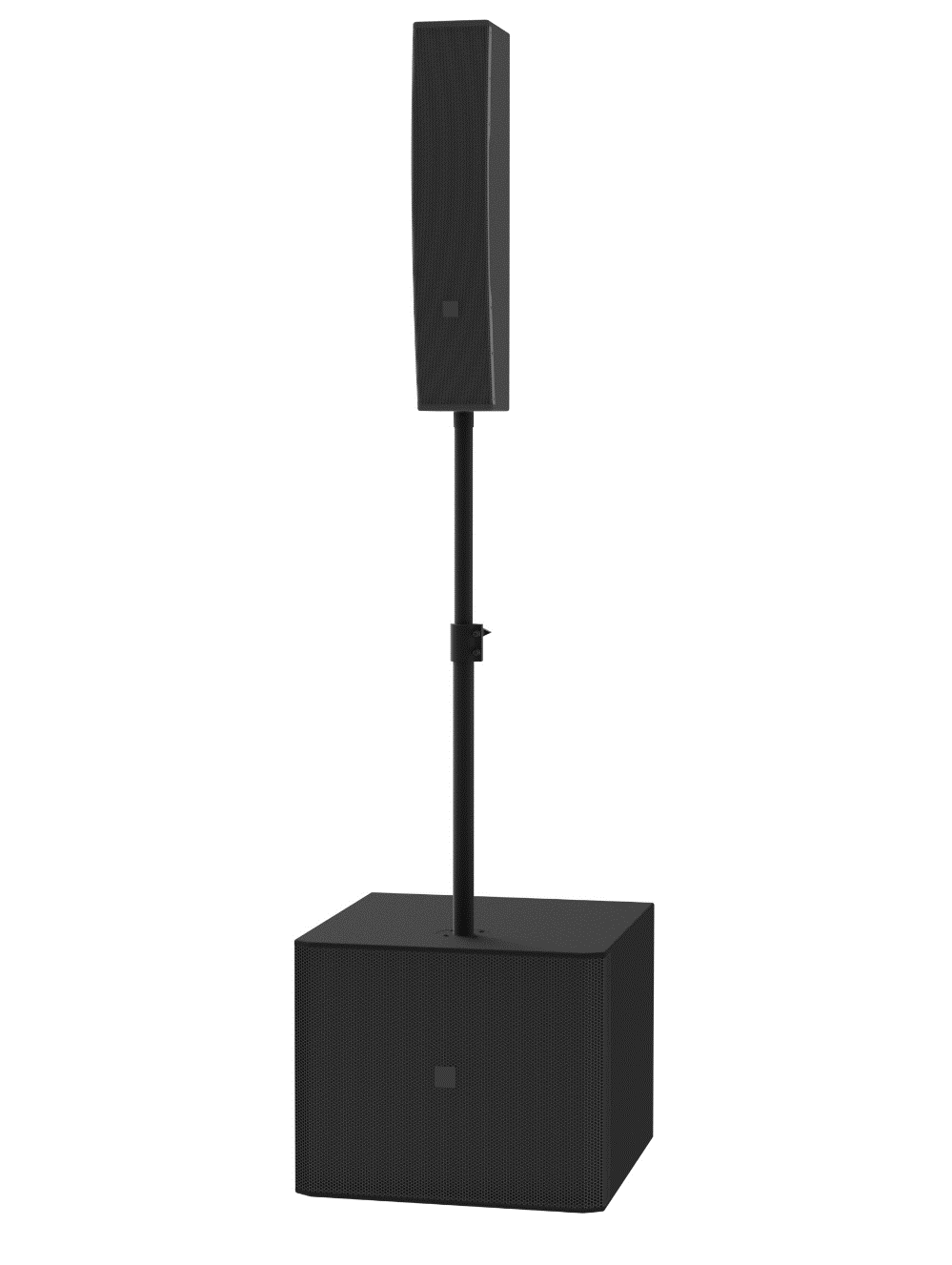

Array Column-Ultra Low Speaker Combo Set SUB1541.
The design is designed to meet the needs of various indoor and outdoor speech and performance applications, especially to complement the application of CLP series products in performances.
Two mounting designs can be installed individually or combined with the SUB15-ALK support system, making them suitable for use in a variety of indoor and outdoor locations.
It can provide clear and transparent voice reproduction and accurate projection angles, and perform excellent low-frequency diving effects and low-frequency radiation energy.
Optional custom waterproof enclosure for outdoor applications.
Features:
CLP4401BF full-range speakers adopt a streamlined design, a unique curved appearance patent, beautiful and practical appearance, and beautiful sound quality.
CLP4401BF full-range speakers are stacked vertically by four 4-inch woofers, which are diverted up and down for greater low-frequency dynamics. The treble uses a 34mm horn treble, and the high-frequency performance is more energetic.
High-performance array columns provide excellent sound reinforcement for complex environments with high natural reverberation coefficients, echoes, and architectural barriers in language and musical listening spaces.
Full Range Sound Column Parameters:
Column unit specifications: bass 4×4″, treble 1x34mm horn treble;
Rated impedance: 4Ω;
Rated Power: 250W (1000W, PEAK)
Characteristic sensitivity level (1m/1W): 94dB;
SPL in the specified frequency band: 115dB;
Effective frequency range: 80Hz-20kHz;
Diffusion angle: 120° horizontally, 40° vertically;
Housing material: plywood;
Grille material: metal mesh;
Connection: crimping terminal;
Mounting system: adjustable angle bracket or wall fixed angle wall mounting bracket or combined floor installation;
Woofer Specification: 1×15″;
Rated impedance: 8Ω;
Rated Power: 500W (2000W, PEAK)
Characteristic sensitivity level (1m/1W): 102dB;
SPL in the specified frequency band: 126dB;
Effective frequency range: 40Hz-500Hz;
Housing material: plywood;
Grille material: metal mesh;
Connection: 1 NL4 socket (+1/-1) is the subwoofer input, 1 NL4 socket (+1/-1) is the array column input;
Minimum dimensions (height×width× depth): 1820x595x600mm;
Maximum dimensions (height×width× depth): 2170x595x600mm;
Product net weight: 40.65kg;
Package Weight: 47.25
Package size: 665*660*555mm
