Description
Product Overview:

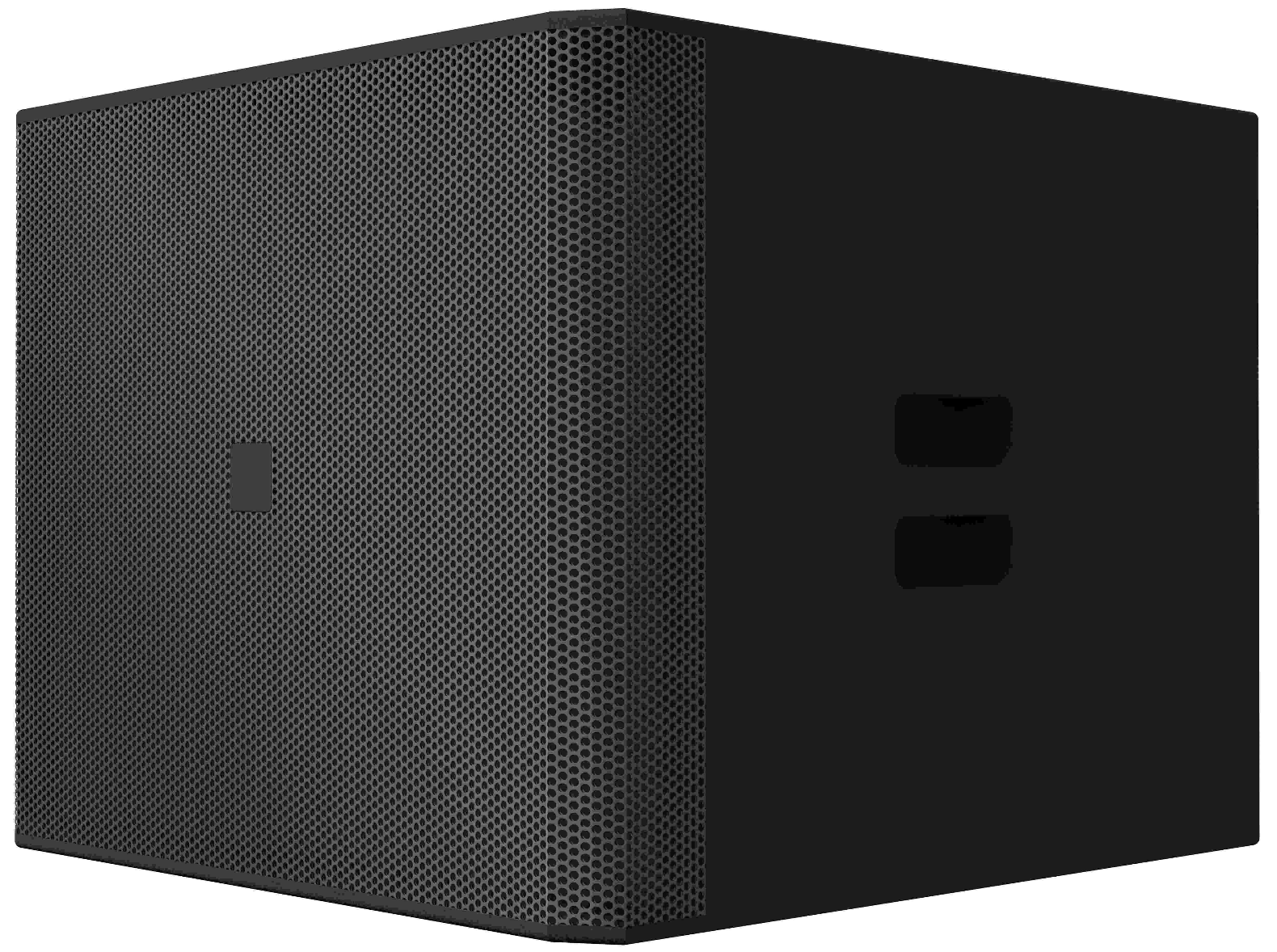

The SUB15 is a compact ultra-low loudspeaker that enhances the low-frequency performance of full-range systems.
Includes a long-stroke 15″ speaker (4″ voice coil driver) housed in a bass direct-fire wooden cabinet.
Two large pilots help reduce air noise at high output power while increasing low-frequency radiated energy.
The SUB15 can be used alone or in combination with CLP4401BF via the SUB15-ALK support system.
Technical parameters:
The panel has a volume control knob and an application scenario call button, and supports four application scenarios to select and call;
DSP channel: two-in, two-out matrix;
DSP inputs: dynamic expansion, delay, 16-segment PEQ, high pass, low pass;
DSP output: compressor, delay, 8-band PEQ, high pass, low pass;
Support input and output channels for grouping and quickly adjust parameters;
Circuit Type: CLASS-D;
Rated power (@1kHz): 1x800W@8 Ω+1x300W@8 Ω;
Frequency response (1W/8Ω): 20Hz-25kHz (±0.5dB);
Intermodulation distortion (20Hz-20kHz, half power): ≤0.1%;
Total harmonic distortion + noise (THD+N): <0.1%@1kHz;
Phase response (20Hz-20kHz, 1W/8Ω): ≤±1.5°;
Noise ratio (A-weighted, rated power, 8Ω): >110dB;
Input impedance: 10KΩ (unbalanced), 20kΩ (balanced);
Damping coefficient (1kHz/8Ω): 800;
Slew rate: ≥60V/us;
Input Sensitivity (1kHz/8Ω): 1V;
Audio Input Interface (INPUT): 1 XLR (QAN) female socket;
Audio Output Interface (LINK): 1 XLR (QAN) male;
Control interface: 2xRJ45 (RS485 protocol), can connect multiple speakers hand in hand to achieve cascade control;
Power output interface: 1 NL4 socket (+1/-1), which is the parallel output of the 1x300W@8 Ω amplifier channel;
Protection function: over-current/over-temperature/overload/load short-circuit protection;
Cooling system: natural convection cooling;
Power supply: AC220V/50Hz, 1 input, 1 cascade output, factory standard 1.5m national standard power cable;
Unit Size: 1×15″;
Rated impedance: 8Ω;
Rated Power: 500W (2000W, PEAK)
Characteristic sensitivity level (1m/1W): 102dB;
SPL in the specified frequency band: 126dB;
Effective frequency range: 40Hz-500Hz;
Housing material: plywood;
Grille material: metal mesh;
Dimensions (height×width× depth): 495x595x600mm;
Product net weight: 35.2kg;
Package weight: 39.9kg (1 piece)
Package size: 665*660*555mm
