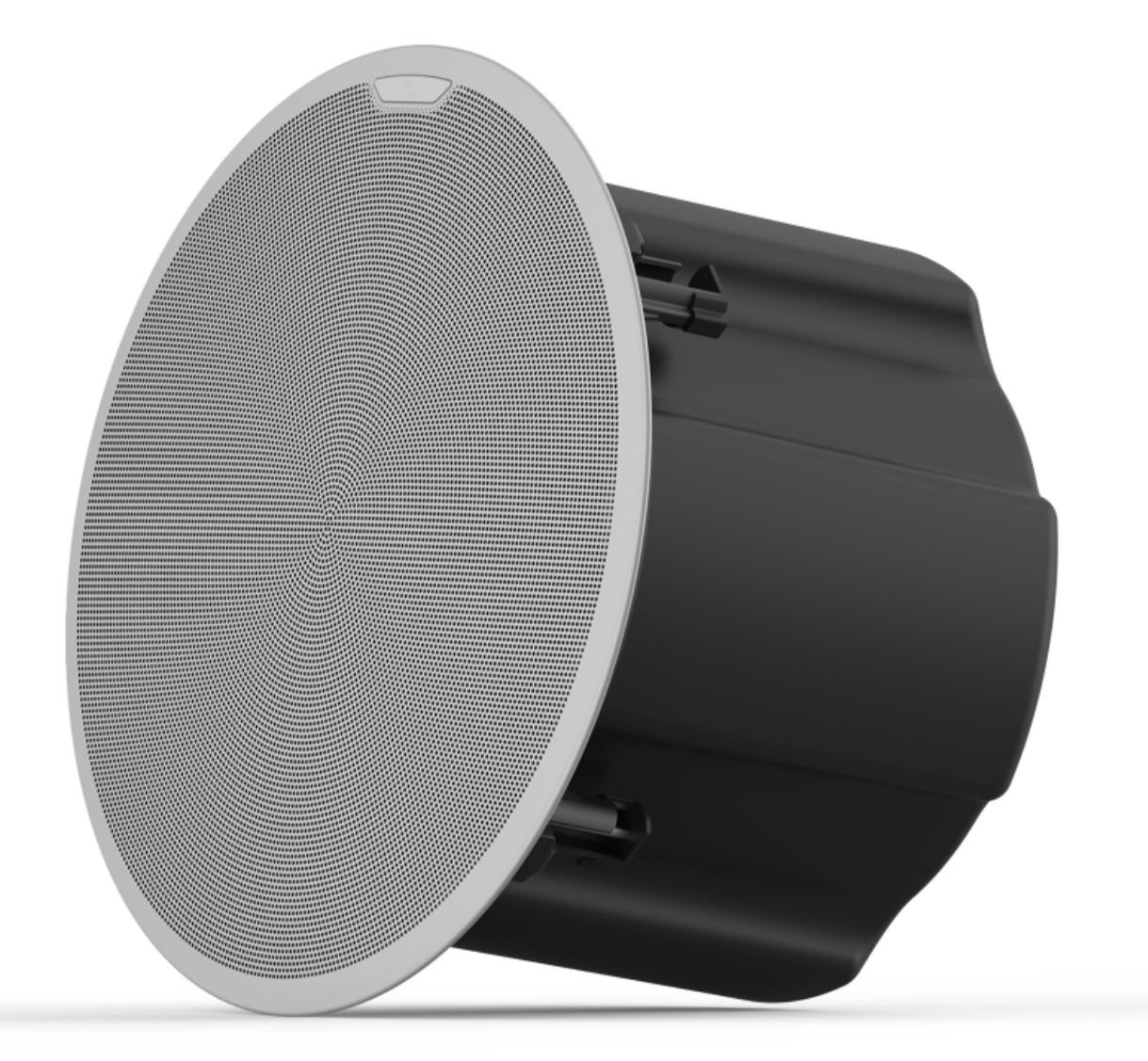

GA POE-BS29T-TZ

Description

8-inch coaxial speaker, front out wiring design, easy system construction. Design 10 N42 high-strength magnet device mesh cover, metal buckle, quadruple installation protection. It has a high SPL output and a large dynamic response.
Technical parameters:
Built-in POE power module;
Built-in Dante audio transmission module;
Single-stage power conversion (DC-AC);
Soft switch technology;
bidirectional energy recovery technology;
Precise PSM (Phase Modulation) technology;
Unit composition: 1×8″+1×1″ dome, coaxial design;
Rated impedance: 8Ω;
Rated power: 80W;
Effective frequency range: 65Hz~20KHz;
Diffusion angle: conical 120°;
Characteristic sensitivity level (1m/1W): 92dB;
SPL in the specified frequency band: 115dB;
Input interface: RJ-45;
Audio Transmission Protocol: Dante;
Audio Routing Control: Dante Controller;
Power input: 802.3af/802.3at/802.3bt compatible;
Heat dissipation: natural convection cooling;
Grille material: metal mesh;
Panel material: ABS;
Back shell material: iron
Mounting buckle: zinc alloy buckle;
Terminal block: front RJ-45;
★ Iron mesh installation: no less than 10 high-strength magnets adsorption;
Safety device: horn reinforced fixation, rear barrel wire safety rope, iron mesh safety rope;
★ Grille process: etching;
Installation size: total height 258.1mm, embedding depth 243.2mm, installation thickness 10-50mm, opening diameter 320mm, maximum outer diameter of iron mesh 375mm;
Product net weight: 5.15kg
Product weight: 7.75kg
Package size: 425*425*326mm
