Description

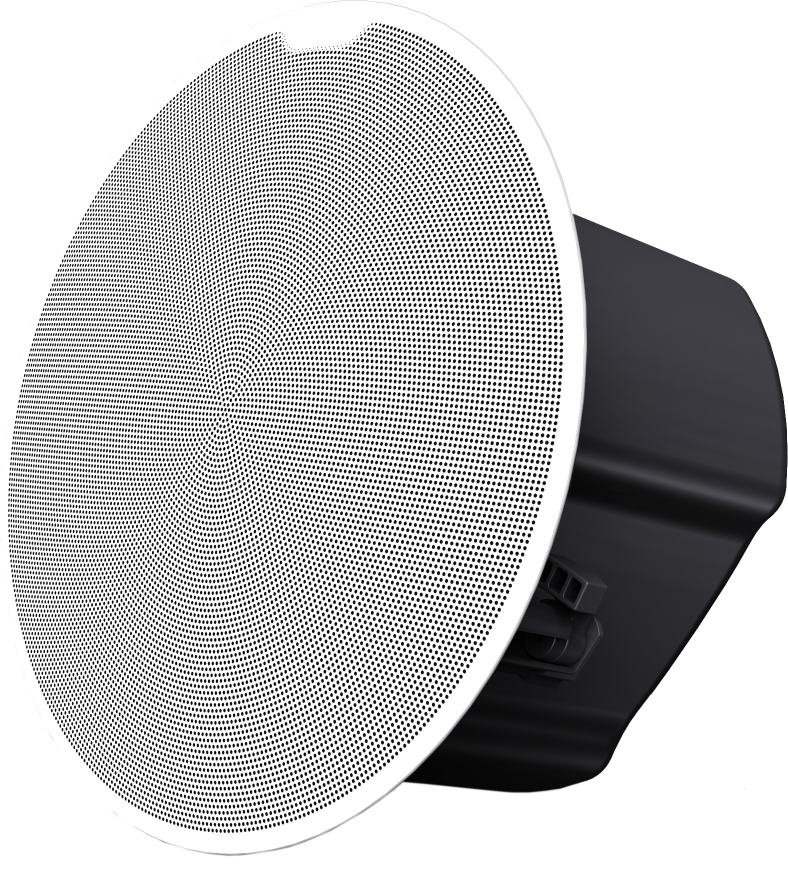

The 6.5-inch coaxial unit has a sensitivity of 89dB and an output power of 50W, with high SPL output and large dynamic response. The front outlet wiring design is convenient for system construction. Designed with 8 N42 high-strength magnet mesh covers, it can be installed in the narrow environment of the ceiling and is suitable for a wide range of environments.
Technical parameters:
Built-in POE power module; Built-in Dante audio transmission module;
Single-stage power conversion (DC-AC);
Built-in DSP functions: volume adjustment, mute, limiter, EQ equalization, channel selection;
Soft switch technology;
bidirectional energy recovery technology;
Precise PSM (Phase Modulation) technology;
Unit composition: 1×6.5″+1×1″ dome, coaxial design;
Rated impedance: 8Ω;
Rated power: 50W (200W, PEAK);
Effective frequency range: 85Hz~20KHz;
Characteristic sensitivity level (1m/1W): 89dB;
SPL in the specified frequency band: 109dB;
Diffusion angle: conical 120°;
Input interface: RJ-45;
Audio Transmission Protocol: Dante;
Audio Routing Control: Dante Controller;
Power input: 802.3af/802.3at/802.3bt compatible;
Heat dissipation: natural convection cooling;
Grille material: metal mesh;
Panel material: ABS;
Back shell material: iron
Mounting buckle: zinc alloy buckle;
Terminal block: front RJ-45;
★ Iron mesh installation: no less than 8 high-strength magnets are adsorbed;
Safety device: horn reinforced fixation, rear barrel wire safety rope, iron mesh safety rope;
★ Grille process: etching;
Installation size: total height 197mm, embedding depth 176mm, installation thickness 10-50mm, opening diameter 270mm, horn outer diameter 316mm;
Product net weight: 3.75kg
Product weight: 12kg
Package size: 750*380*285mm
